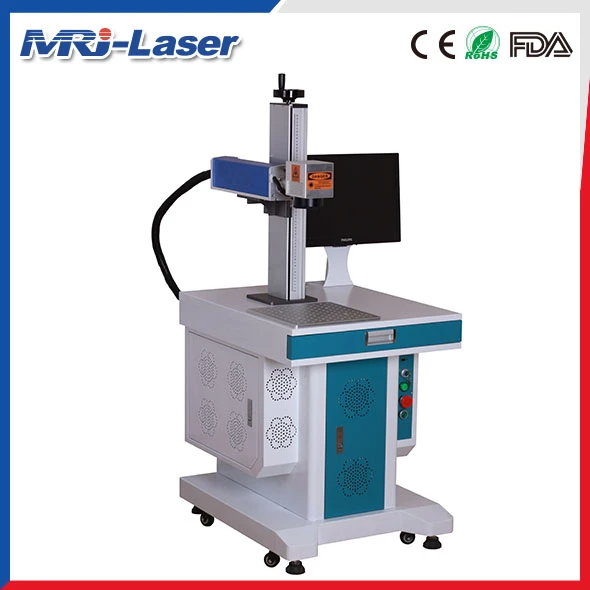

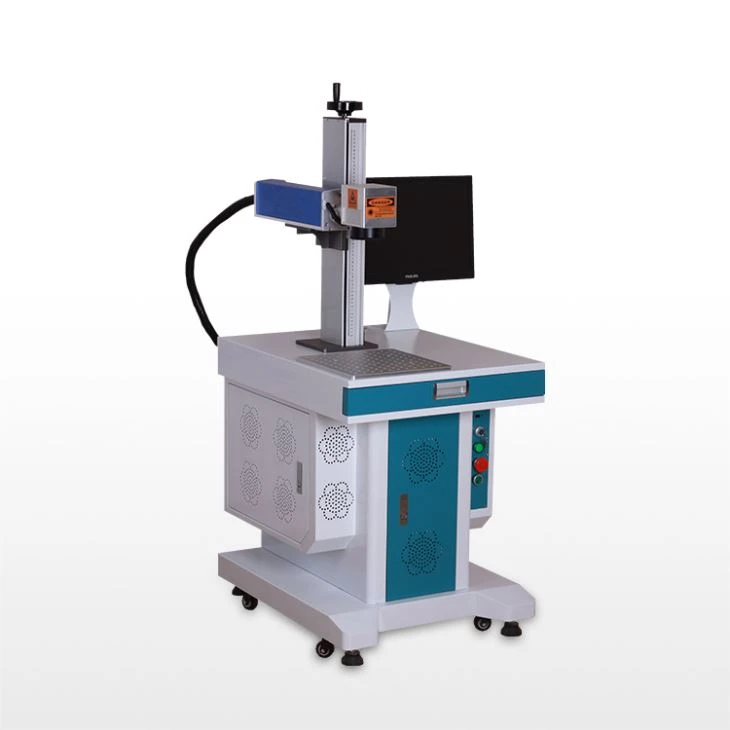

MRJ-FL-20Y Fiber Laser Npav Tshuab
Cov Cim:
MRJ-FL-20Y fiber ntau laser marking tshuab nrog nplua beam zoo thiab high-precision marking effect;
Cov workbench yog nruab nrog kev ua haujlwm platform, uas yog dav siv hauv Hoobkas, Rhiav thiab lwm yam;
High speed marking, high repeat positioning raug;
Tsis muaj kev tu txhua hnub rau lub laser, thiab kev ua hauj lwm lub sij hawm yog txog li 100000 xuab moos.
Daim teb thov:
Siv dav dav hauv tshuab hluav taws xob, khoos phis tawj, kho vaj tse, ntu thiab teev, thiab ntau yam cuab yeej, thiab lwm yam, qhov uas nws muaj siab rau qhov tob, smoothness thiab precision. Feem ntau siv rau lub laser npav ntawm ob hom khoom hlau xws li steel hlau, kev kub ceev, hlau hlau, hlau, aluminium & txhuas alloy thiab lwm yam khoom siv tsis yog xim hlau xws li ABS, PC, thiab lwm yam.
Kev Ua Haujlwm Khoom Ua Ntej Parameters:
Qauv | MRJ-IB-20Y | MRJ-IB-30Y | MRJ-IB-50Y | |
Laser zog | 20W | 30W | 50W | |
Laser Wavelength | 1064nm | 1064nm | 1064nm | |
Beam Zoo | M 2 <> | M 2 <> | M 2 <> | |
Rov qab ua dua | 20-80KHz | 30-80KHz | 50-120KHz | |
Npav Teb | 110mmx110mm | 110mmx110mm | 110mmx110mm | |
Npav qhov tob | ≤1,2 hli | ≤1,5 hli | ≤ 2 hli | |
Npav Kab Ceev | ≤ 14000mm / s | ≤ 14000mm / s | ≤ 14000mm / s | |
Kab Tsawg Kab Tsawg | 10um | 10um | 10um | |
Yam Tsi Ua Ntej | 0.15 hli | 0.15 hli | 0.15 hli | |
Repetition Precision | ± 0.005 hli | ± 0.005 hli | ± 0.005 hli | |
Hwj chim Siab | ≤600w | ≤800w | ≤1000w | |
Txij Nkawm Tsis Txaus Siab | 100000hours | 100000hours | 100000hours | |
Cov tswv yim zog | Single Phase110VAC / 220VAC / 50-60Hz | |||
Kev Siv Txais Tawm | Cua txias | Cua txias | Cua txias | |
Cim npe nrov: mrj-fl-20y fiber ntau laser marking tshuab, hauv Suav teb, tus neeg muag khoom Suav teb, manufacturers, luv nqi, muas, pheej yig, luv nqi
