20W Handheld Portable Fiber Laser Npav Tshuab
Khoom sivTaw qhia:

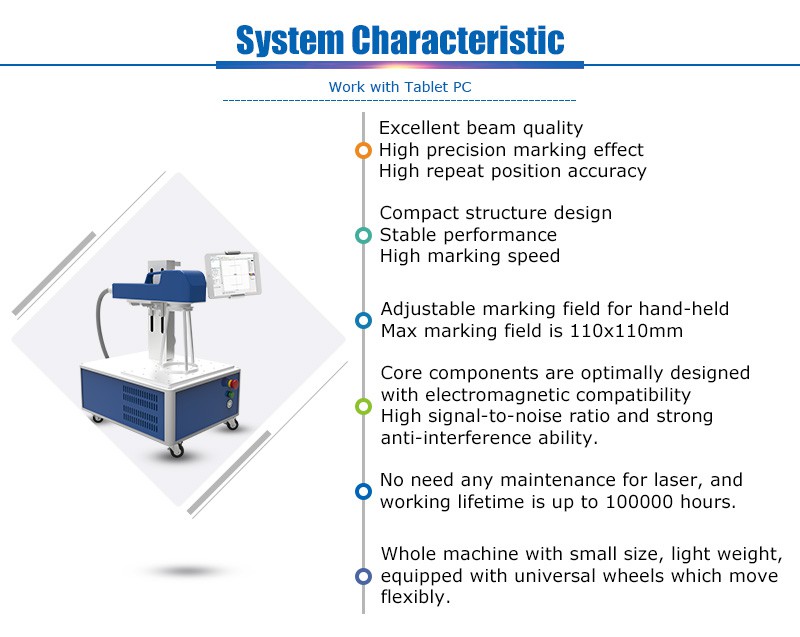

MRJ-FL-SC20A yog ibtes tuav thiab portable fiber ntau laser npav tshuabuas siv cov tshuab laser qib siab. Nws nta tus kheej tsim fiber ntau laser, ib qho kev sib xyaw ua ke, thiab kev tsim qauv tsim qauv. Lub tes tuav lub taub hau hnyav tsuas yog 1500g thiab yog lub ntiaj teb lub tshuab laser me tshaj plaws. Nws cov qauv tsim tshwj xeeb tso cai rau nws kom ua tau raws li ntau yam kev kos cim kev xav tau rau cov khoom ua haujlwm uas nyuaj rau muab tso rau ntawm qhov chaw ua haujlwm. Hauv cov ntsiab lus, nws yog portableQR code laser engraving tshuab.
Product Performance Parameters:
|
Qauv |
MRJ-FL-SC20A |
|
Laser zog |
20W |
|
Laser wavelength |
1064nm ua |
|
Beam Quality |
M2<1.6 |
|
Repetition zaus |
20-80KHz |
|
Marking Field |
110 x 110 mm |
|
Kev Ntsuas Qhov tob |
Tsawg dua los yog sib npaug li 1.2mm |
|
Marking Kab Ceev |
Tsawg dua lossis sib npaug li 14000mm / s |
|
Yam tsawg kawg kab dav |
10 awm |
|
Yam tsawg kawg nkaus |
0.15 hli |
|
Repetition Precision |
± 0.005mm |
|
Kev siv fais fab |
Tsawg dua los yog sib npaug li 600w |
|
Lub Sijhawm Tsis Muaj Kev Kho Mob |
100, 000 teev |
|
Lub zog nkag |
Ib Theem 110V / 220V / 50-60Hz |
|
Txoj kev txias |
Cua txias |
