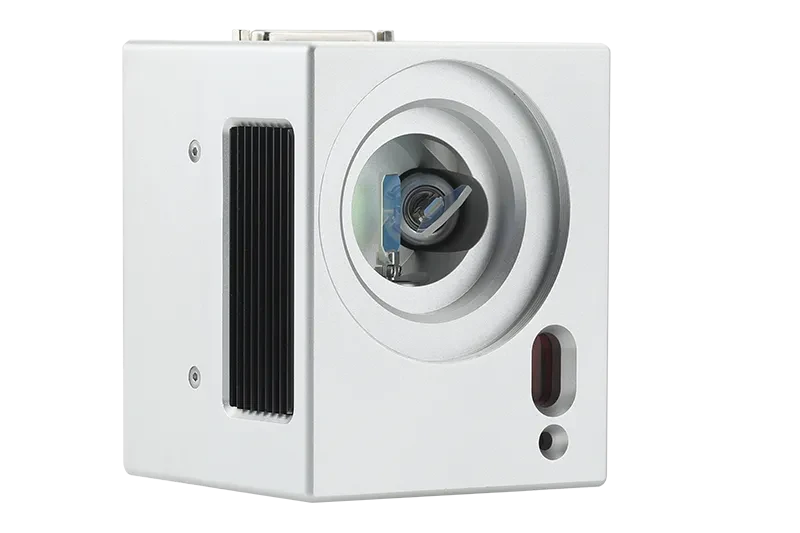

AF2206-S Autofocus Galvanometer
Khoom Description
■ Ib qho kev sib txawv photoelectric sensor meej pom lub cev muaj zog rotor txoj hauj lwm, muab cov linearity zoo heev, tsawg drift, thiab siab daws teeb meem thiab rov ua dua.
■ Precision load engineering rau lub lens 10mm, ua ke nrog siab - precision motor sib dhos thiab lub qhov dej zoo -tsim qauv-featuring tsis tshua muaj kev sib txhuam zoo li qub thiab tsawg kawg xoom-point offset- ua kom pom kev ua haujlwm zoo.
■ Ua -nyob rau hauv kev tiv thaiv overload, overcurrent, thiab thim rov qab polarity txhim khu kev ntseeg tau.
■ Ua tau zoo daws teeb meem xws li thermal drift, teeb liab cuam tshuam, thiab xoom-point drift hauv galvanometer motors.
■ Ib hom autofocus ua kom nrawm, ib qho - kov qhov chaw rau qhov siab focal preset, boosting kev ua hauj lwm efficiency.
■ Lub pob autofocus tau yooj yim ua ke rau saum lub mounting bracket rau kev ua haujlwm yooj yim.
Khoom Parameters
| Marking ceev (1) | 6000mm / s |
| Positioning ceev (1) | 11000mm / s |
| Sau nrawm (2) | 516cp ua |
| Kauj ruam teb lub sij hawm (tag nrho mus ncig 1%) | 288 mus |
| Kauj ruam teb lub sij hawm (tag nrho mus ncig 10%) | 895 mus |
| Kev taug qab yuam kev | Tsawg dua lossis sib npaug li 164us |
| Qhov tseeb thiab yuam kev | |
| Linearity | 99.90% |
| Rov ua dua qhov tseeb | 8 μRad |
| Tau qhov yuam kev | 5mRad |
| Zero offset (batch keeb kwm yuam kev) | 5mRad |
| Ntev - lub sij hawm drift (ua haujlwm txuas ntxiv 8 teev) | 0.5mRad |
| Scale drift | ± 40PPM / degree |
| Zero drift | ＜15μRad / degree |
| Fais fab thiab teeb liab | |
| Input voltage | ± 15VDC |
| Rated tam sim no | 2A |
| Interface raws tu qauv | XY2-100 |
| Lub kaum ntse ntse | ± 11 degree |
| Kev khiav hauj lwm tam sim no, kub, qhov ntev | |
| Ua haujlwm kub | 0℃~ 45 degree |
| Cia kub | -10℃~ 60 degree |
| Laser input aperture | 10 hli |
| Galvo qhov ntev (L × W × H) | 118.5 × 96.5 × 94.1 hli |
| Galvo hnyav | 1.65 Kg |
| Auto focus control parameters | |
| Kev ntsuas ntsuas | Laser ntau yam |
| Kev ntsuas ntau yam (2 xaiv muaj) | 120 ~ 280mm / 200 ~ 600mm |
| Kev ntsuas kev daws teeb meem | 0.01mm ib |
| Kev ntsuas qhov tseeb | ± 0.1 hli |
| Laser wavelength | 620-690 nm |
| Kev ntsuas ib zaug | 0.25s |
