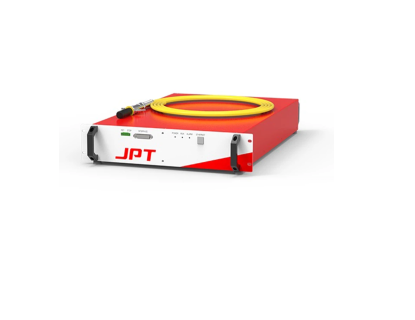

Laser Source 500Watt Pulsed JPT Hom
Laser qhov chaw 500Watt pulsed Laser JPT Hom, 1.5MJ / 5MJ / 15MJ
Xa kev nug
Khoom Taw qhia
Cov khoom siv
Pwm Nto Tu
Yas Preprocessing
Txheej Preprocessing
Roj thiab av tshem tawm
Khoom Parameters
| Series Qauv | YDFLP-CL-500-1-A | YDFLP-CL-500-15-A | YDFLP-CL-500-50-A |
|---|---|---|---|
| Siv thaj chaw | <0.58 | <4.5 | <9 |
| Txheej Ntev | m | 5 | 10 |
| Nruab Nrab Output Fais Fab | W | 500 | 500 |
| Maximum Pulse Zog | mJ | 1.5 | 15 |
| Pulse Adjustable Range | kHz | 1-4000 | 1-4000 |
| Pulse Dav | ns | 30-500 | 30-500 |
| Tso zis zog Instability | % | <5 | <5 |
| Txoj kev txias | Cua txias | Cua txias | Cua txias |
| Kev khiav hauj lwm voltage | V | 48 (DC) | 48 (DC) |
| Kev siv hluav taws xob siab tshaj plaws | W | 1800 | 1800 |
| Environmental Power Supply Tam sim no | A | Ntau dua lossis sib npaug li 2200 | Ntau dua lossis sib npaug li 2200 |
| Central Wavelength | nm | 1064 | 1064 |
| Harmonics (3dB) | nm | <20 | <20 |
| Lub Hwj Huam Hloov Kho Ntau Yam | % | 0-100 | 0-100 |
| Kev khiav hauj lwm qhov kub thiab txias | degree | 0-40 | 0-40 |
| Net nyhav | kg | 12.5 | 13.2 |
| Qhov Loj (L × W × H) | mm | 392×288×135 | 412×313×135 |
Cim npe nrov: laser qhov chaw 500watt pulsed jpt hom, ua nyob rau hauv Suav teb, lwm tus neeg Tuam Tshoj, manufacturers, luv nqi, yuav, pheej yig, luv nqi
